Digital Thermometer (C / Embedded Systems)
Mar 2018 - May 2018 | San Diego State University
A digital thermometer using a PIC16F18324 microcontroller.
GitHub Page
Senior Design A Project
▪ Designed a digital thermometer that displays temperature on a dual 7-segment display.
▪ Used Mentor Graphics Design Capture to design the PCB board.
▪ Worked with a PIC16F18324 Microcontroller.
▪ Utilized SPI communication to control the Display Driver from the Microcontroller.

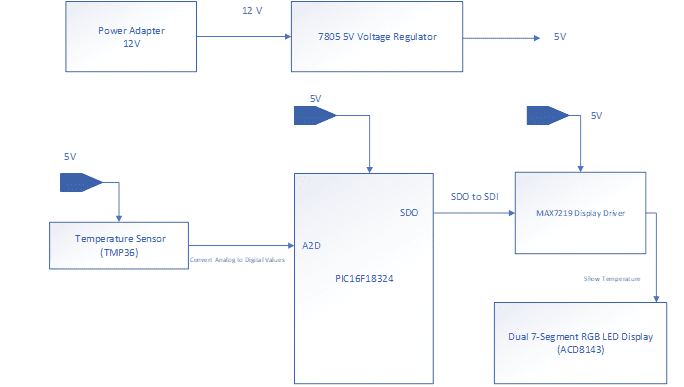

Block Diagram - Figure 1

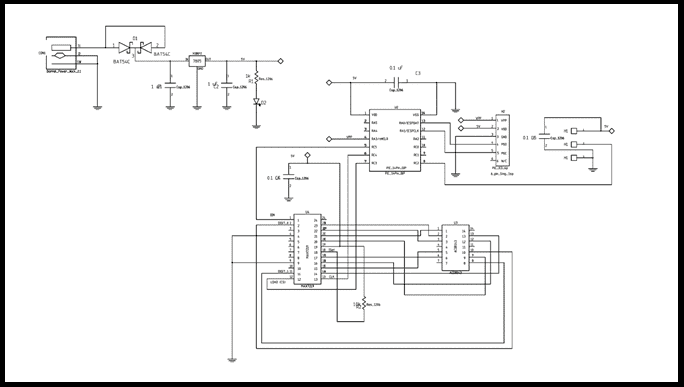

Schematic - Figure 2

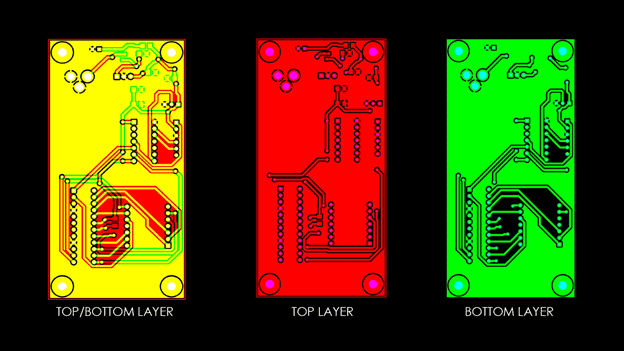

PCB - Figure 3
